DSL - #8 Cregit - working to contribute to the kernel's token tracking tool

As part of the second evaluation of my classes on Open Source Software (OSS) my whole class is contributing to an OSS project which each group can choose. This post is a follow-up of my notes on our first contribution to the Linux Kernel and part of this series.

As my master's will be about corporate contributions to the kernel's source code and cregit is one of the tools tied to the Linux Foundation's CHAOSS project for open source health analytics, I will also use it in this part of the discipline.

What (exactly) is cregit?

Cregit is a tool that lets you see exactly when and by whom a specific token was added. It works kind of like a git-blame for tokens. It was created by Daniel M. German and colleagues, and the idea is described in detail in their paper cregit: Token-level blame information in git version control repositories (Empirical Software Engineering, 2019).

Tokens are just any sequence of non-blank chars that is meaningful for a language. For most of the kernel code, this means any sequence of chars.

Why not just use git blame?

Regular git blame works at the granularity of a whole line, and that granularity breaks down surprisingly often. Reindent a block, wrap a long line, split a function signature across two lines, or run a formatter over the file, and git blame will happily attribute all of those lines to whoever touched the whitespace last, even though the actual code was written years earlier by someone else.

Cregit sidesteps this by attributing each individual token, so a reformat that moves code around without changing it keeps the original authorship intact. That distinction is exactly what I care about for my master's: if you want to measure how much of the kernel a given company actually wrote, line-level blame will quietly credit the wrong people every time the code is reshaped, while token-level blame stays honest.

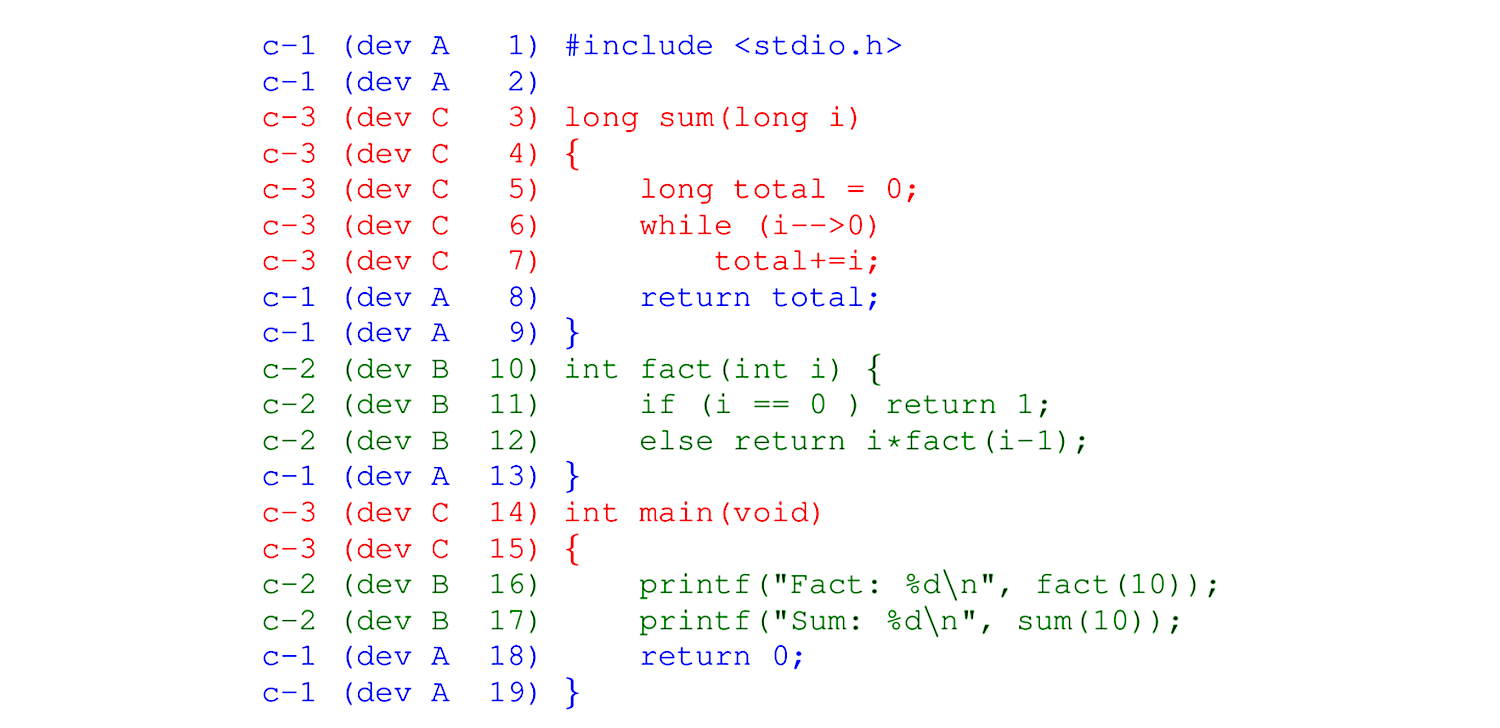

Take a look at how cregit works:

In the image above, every token is colored and labeled with the commit and developer that introduced it (c-1/dev A, c-2/dev B, c-3/dev C). That is the "git-blame for tokens" idea in practice.

Currently cregit supports .c/.h files as well as Go, Java and m4.

How the pipeline works

Under the hood, cregit is less a single program and more a pipeline of steps glued together. Roughly, it works like this:

1. Tokenize each source file using srcML and ctags so that every token ends up on its own line.
2. Rebuild the history as a parallel git repository of these tokenized blobs, preserving the original commits and authorship.
3. Blame the tokenized repository with plain git blame. Because every token is now its own "line", the blame is effectively per-token.
4. Map back the results onto the original source to produce the colored, token-level HTML view you saw above.

This is also why cregit was hard to run: each stage depends on external tools (srcML, ctags) and on the Scala/Perl modules that stitch them together, so if any one link in the chain is outdated the whole pipeline falls over.

What contribution would we do?

Mapping our exact contribution was hard, because running cregit itself is a challenge. The tool had its most recent update back in 2023 and it is written across several languages, mostly Scala and Perl, with Python and shell scripts tying the pipeline together, which made getting it to run hard.

So we started by updating the modules we needed to run the tool, with the help of LLM analysis since we have little to no expertise in Scala and Perl. To give a concrete sense of what "getting it to run" actually meant, some of the things that were broken:

• The build tool was stuck in the past. sbt 0.13.7 threw a NoClassDefFoundError on any modern JVM, so nothing compiled until we bumped it to 0.13.18.
• A dependency had vanished. cregit pinned sqlite-jdbc 3.8.0-SNAPSHOT, which no longer exists in the Sonatype repositories, so resolution failed outright and we moved it to the stable 3.45.3.0.
• Hardcoded and insecure fetches. The jgit resolver was still pulling over plain HTTP, and the Perl scripts used a fixed #!/usr/bin/perl shebang that breaks on distributions where Perl lives elsewhere (#!/usr/bin/env perl fixes it).
• A subtle srcML incompatibility. tokenBySha.pl wrote temp files without an extension, and newer srcML (1.1.0) refuses to parse a file it can't identify by suffix. It was a one-line change that cost a disproportionate amount of debugging.

You can see all of these changes in this pull request.

Another problem we had was that the maintainer of the cregit tool was unavailable to talk to, so we moved to work on our own fork: cregit-codev/cregit.

This fork ended up being our group's solution for mapping the issues, contributing and collaborating.

In the issues of this fork we mapped the work we needed to do and separated it into phases (GitHub milestones).

First contribution

We ended up sending our first changes, fixing cregit to run on modern environments and updating the modules, as a contribution on the main git repo, and we actually got a response from the maintainer: cregit/cregit#16.

They suggested we keep development on our fork, since by that point we had already developed more there than in this first fix, and added that they had forgotten about their GitHub notification e-mail.

Other contributions

From there we made a good number of contributions around modernization and housekeeping of our fork: improving the docs, removing hardcoded paths for temporary files, and making it easy to run through a single script. All of our contributions can be seen in the list of closed issues.

We merged a total of 9 PRs into our fork and mapped another 18 issues that are further improvements to the cregit tool, and we expect there are more to come.

Collaborating with the maintainer

We had an incredible discussion with Daniel German, the creator and maintainer of cregit, about the future of the tool; you can find it in this discussion thread. In it, performance was highlighted as a key problem for cregit and the next thing to work on, and a total architectural change to how the tool works was done pretty quickly by the maintainer with incredible results: cregit-codev/cregit#41.

Conclusion

Getting cregit to run again turned out to be a contribution in itself: the tool had been dormant since 2023 and its Scala/Perl pipeline no longer worked on modern environments. By modernizing the build, removing hardcoded paths and wrapping everything in a single run script, we made cregit usable again, and in the process our fork became a small hub of activity, with merged PRs, a backlog of mapped improvements, and a renewed conversation with the original maintainer about where the tool should go next (starting with performance).

For my master's on corporate contributions to the kernel, having a working, hackable cregit is a solid foundation, and I expect to keep contributing to it as the research moves forward. If you want to see where this is heading, I wrote up the research proposal it feeds into in Measuring Corporate Knowledge Concentration in the Linux Kernel.

References

[1] D. M. German, B. Adams, and K. Stewart, cregit: Token-level blame information in git version control repositories, Empirical Software Engineering, vol. 24, no. 4, pp. 2725-2763, 2019

[2] Cregit: token-level blame information for the Linux kernel, Linux.com

[3] cregit - token-level blame browser, cregit

[4] cregit for the Linux kernel (4.19), kernel.org

[5] cregit/cregit - original repository, GitHub

[6] cregit-codev/cregit - our fork, GitHub

[7] CHAOSS - Community Health Analytics in Open Source Software, The Linux Foundation
